Outdoor LED Dance Floor Display

    Outdoor LED Dance Floor Display is fully waterproof led dance floor panel, can be washed directly with water. It’s widely applied for DJ dance floor led display screen, concert stage, night clubs, exhibition stands, television studios and etc.

    Module Dimension: 250x250mm

    Cabinet Dimension:500x1000mm/500x500mm

    Pixel Pitch: 3.91mm,5.2mm,6.25mm,8.928mm

    Cabinet material: iron/ aluminum

    Key features:

    1.IP65 fully waterproof dance floor led display screen

    1. Interactive and Non-interactive design for option

    3. High load-bearing capacity, over 1000kg/sqm

    4. High anti-slippery and anti-vibration

    5. Easy service with magnetic fixed module design

Inquire Now Download Download

Products Description

    Outdoor LED Dance Floor Display is fully waterproof led dance floor panel, can be washed directly with water. It’s widely applied for DJ dance floor led display screen, concert stage, night clubs, exhibition stands, television studios and etc.



    Product features:

    1.Fully waterproof IP65 dance floor led display screen, waterproof led mask design, can be washed directly with water.

    2.High anti-slippery and anti-vibration, anti-UV mask design, it enables sun exposure without oxidation, it also has excellent light transmittance

    3.Super strong load-bearing capacity, combined with point-to-face contract and support technology and as well as the load capacity.

    4.Interactive LED Floor Screen, multi-point touch led floor display screen, no delay in effective effect. Interactive LED Floor Display delivers strong visual impact, providing the audience a truly amazing and unforgettable experience and greatly improving their engagement.



    5.Easy to service. The magnetic fixed module design, which greatly decreases service time and improves works efficiency. LED floor screen module can be easily replaced.

Products Specifications

Pixel Pitch 3.91mm 5.2mm 6.25mm 8.928mm
LEDs SMD 2727 SMD 2727 SMD 2727 SMD 3535
Module size 250*250mm 250*250mm 250*250mm 250*250mm
Module resolution 64*64dots 48*48dots 40*40dots 28*28dots
Density 65536 pixels/sqm 36864 pixels/sqm 25600 pixels/sqm 12544 pixels/sqm

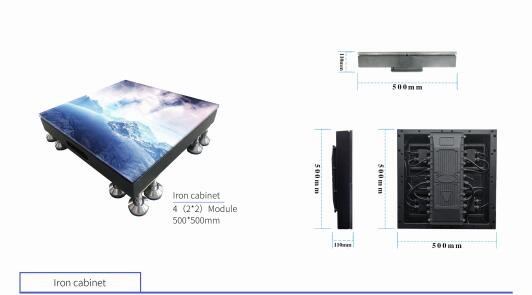

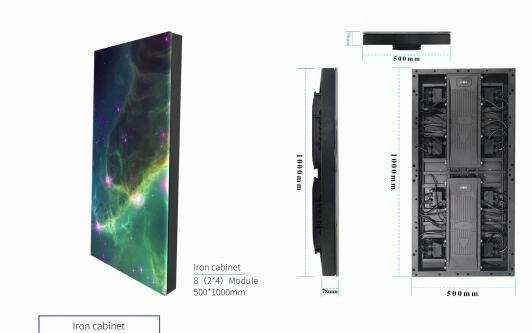

LED Cabinet Size 500*1000*87/500*500*87(mm) 500*1000*87/500*500*87(mm) 500*1000*87/500*500*87(mm) 500*1000*87/500*500*87(mm)
Cabinet Weight 21.8kg/pc,11kg/pc 21.8kg/pc,11kg/pc 21.8kg/pc,11kg/pc 21.8kg/pc,11kg/pc
Material Iron Iron Iron Iron
Brightness 3000-3500 cd/m2 (Nits) 4000-4500 cd/m2 (Nits) 5000-5500 cd/m2 (Nits) 5000-5500 cd/m2 (Nits)
Avg power consumption 600w 600w 600w 600w
Max power consumption 1200w 1200w 1200w 1200w
Best Viewing Distance 6m to 80m 7m to 90m 8m to 10m 9m to 110m
Grey Level 14 ~16bits 14 ~16bits 14 ~16bits 14 ~16bits
Fresh frequency ≥1920Hz ≥1920Hz ≥1920Hz ≥1920HZ
Humidity-operating 10% ~ 95% 10% ~ 95% 10% ~ 95% 10% ~ 95%
Screen life ≥100000 hours ≥100000 hours ≥100000 hours ≥100000 hours
Controlling mode Interactive/non-interactive Interactive/non-interactive Interactive/non-interactive Interactive/non-interactive
Certificates CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL CE,RoHs,FCC,UL
Warranty 3 Years 3 Years 3 Years 3 Years
Protective grade IP65 IP65 IP65 IP65
