DIP Outdoor LED Display

      DIP Outdoor LED Display Traditional Iron LED Cabinet

      The Traditional Fixed Outdoor LED Display Screen Solution with High Brightness and Strong durability

    Pixel Pitch: 10mm, 16mm,20mm

    Cabinet Material: Iron

    Cabinet Size: customized

    Applications: Billboard, LED Video wall, Shopping mall, Traffic sign, etc.

    Key features:

    1. High brightness 7500 nits or above
    2. DIP encapsulation much more stable and mature
    3. Reliable waterproof grade, front IP65 and IP54 back
    4. Long-time working Outdoor LED Display
Inquire Now Download Download

Products Description

    DIP #leddisplays are still popular for outdoor advertising. It’s more stable quality, high brightness and better waterproof ability. Ensure long-time working life.

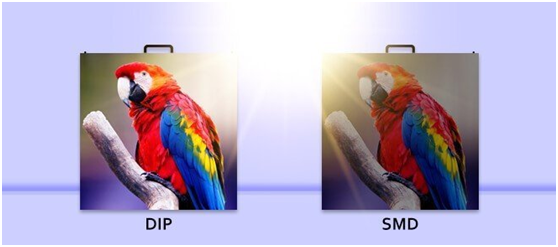

    Higher brightness
    The highest brightness of DIP outdoor LED Display can up to 10000nits or above, can face with the sunshine directly.

    More stable quality and longer life time
    As DIP encapsulation technology is quite mature and stable after 20 years experiences, we installed many outdoor led screens before 10 years. They still work very well without modules problem.


     ​ Good waterproof protection grade, IP65 front and IP54 back, enables the screen to work in all outdoor weather conditions include heavy rain weather.





    Less brightness attenuation
    Based on excellent encapsulation technology, DIP outdoor led display is very less brightness attenuation. It still can show bright display content after use 5 or 6 years.

Products Specifications

Item Parameters Parameters Parameters
Pixel Pitch(mm) 10 16 20
Pixel Density(dots/㎡) 10000 3906 2500
LEDs DIP346 DIP346 DIP346
Module Size(mm)W*H 160*160/320*160 256*256 320*160
Module Resolution(dots) 16*16/32*16 16*16 16*8
Cabinet Size(mm)W*H 960*960/can be customized 1024*1024/can be customized 960*960/can be customized
Cabinet Resolution(dots) 96*96 64*64 48*48
Cabinet Weight(kg/㎡) 55 60 60
Cabinet Material Iron Iron Iron
Best Viewing Distance(m) ≥10m ≥16m ≥20m
Brightness(cd/㎡) ≥7500 ≥8000 ≥6000
Driving Mode Constant current drive 1/4 scan Constant static current drive  Constant static current drive
Refresh Rate ≥960Hz ≥1920 ≥1920
Max. Power Consumption(W/㎡) 900 900 900
Ave. Power Consumption(W/㎡) 350 350 350
Input Voltage AC 86-264V/60Hz AC 86-264V/60Hz AC 86-264V/60Hz
Viewing Angle(H/V) 110°/70° 110°/70° 110°/70°
Color Processing 14 bit 14 bit 14 bit
Grey Scale 65536 level 65536 level 65536 level
IP Rating  IP65  IP65  IP65
Working Temperature ﹣20℃~+70℃ ﹣20℃~+70℃ ﹣20℃~+70℃
Storage Temperature ﹣40℃~+70℃ ﹣40℃~+70℃ ﹣40℃~+70℃
Working Humidity (RH) 10%-90%RH 10%-90%RH 10%-90%RH
Storage Humidity  (RH) 10%-90%RH 10%-90%RH 10%-90%RH
MBTF >10,000 hours >10,000 hours >10,000 hours
Lifespan ≥100,000 hours ≥100,000 hours ≥100,000 hours
Control System Novastar/Linsn/Colorlight/Huidu/Xixun Novastar/Linsn/Colorlight/Huidu/Xixun Novastar/Linsn/Colorlight/Huidu/Xixun
Maintenance rear service rear service rear service
